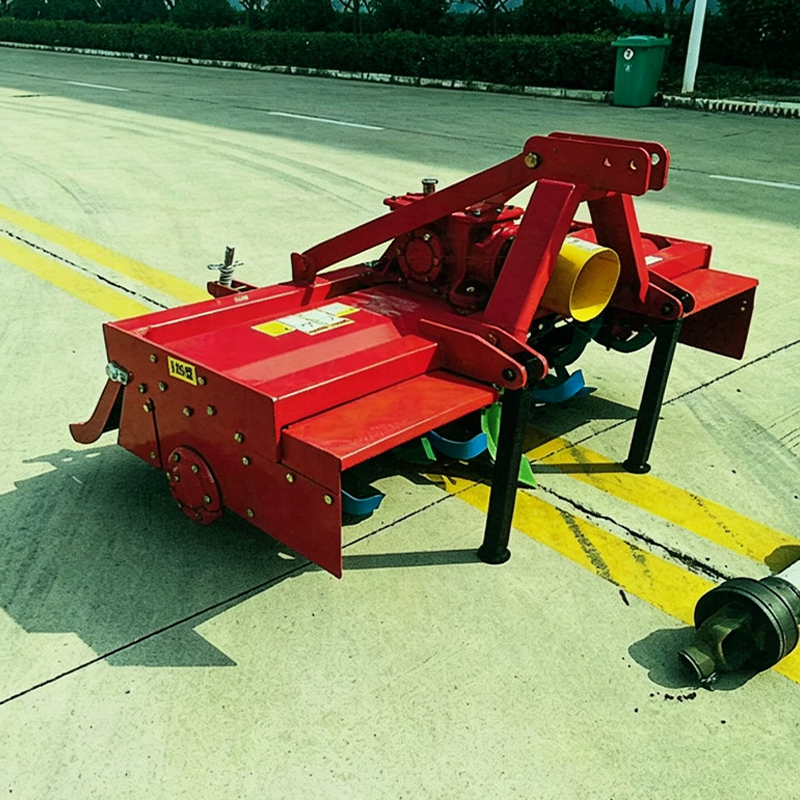

Model name: 1GKN-125 rotary tiller
Structural type: frame type

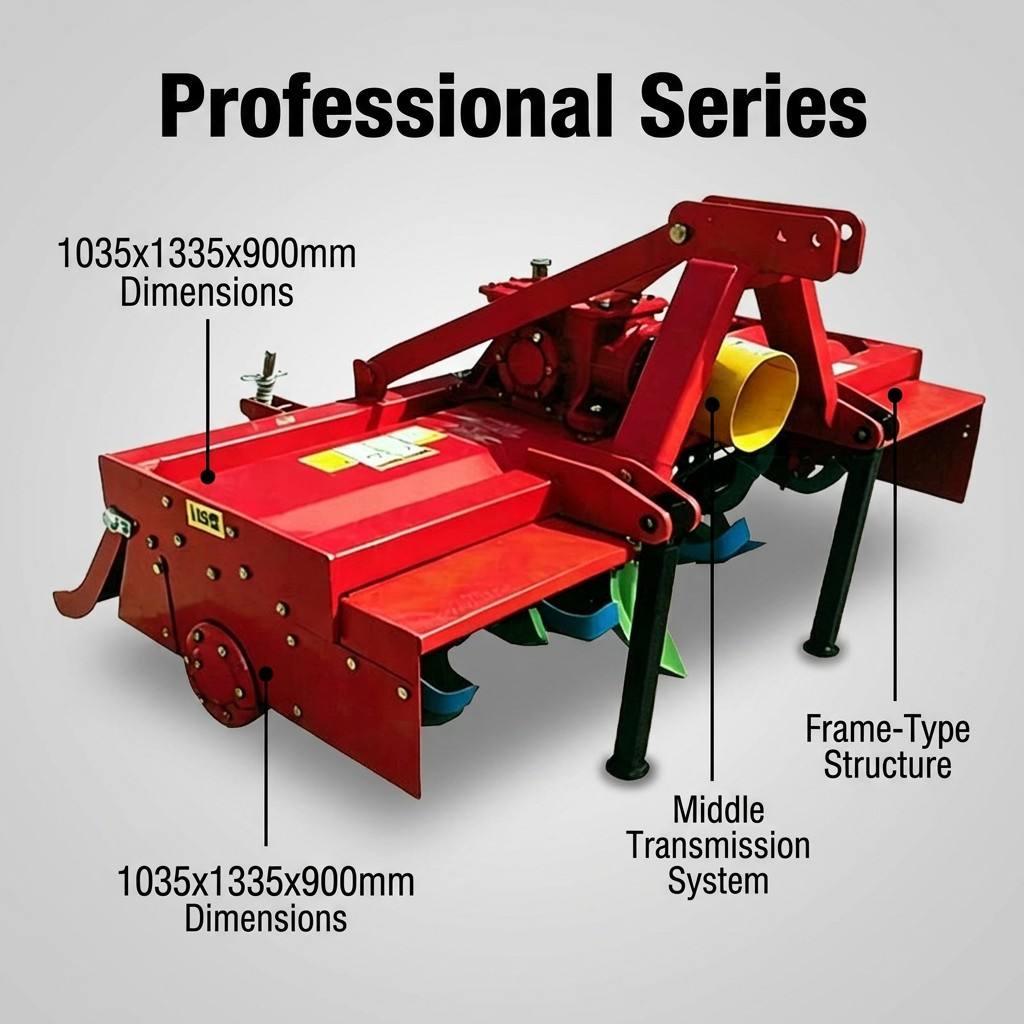

Overall dimensions of the machine (length x width x height) mm: 1035 x 1335 x 900
Operating speed range: 0.5-1.0m/s

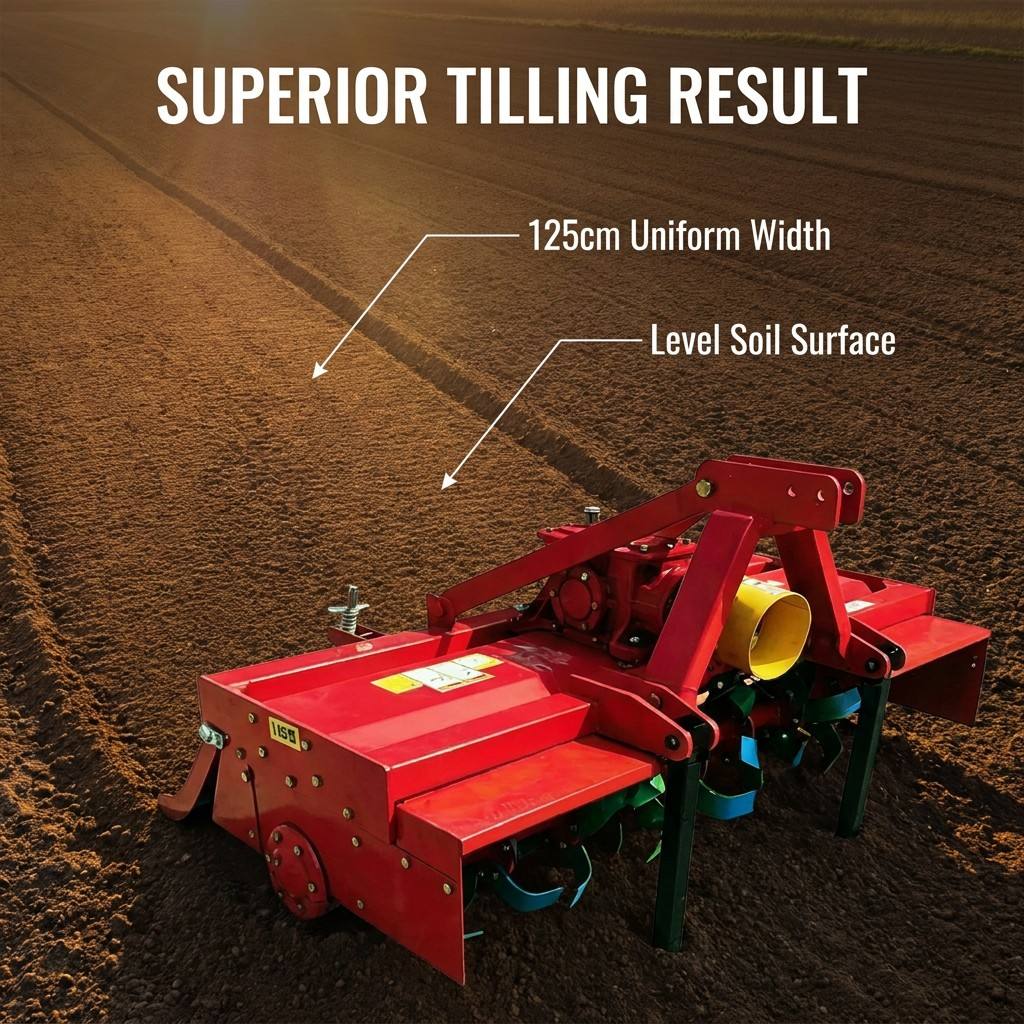

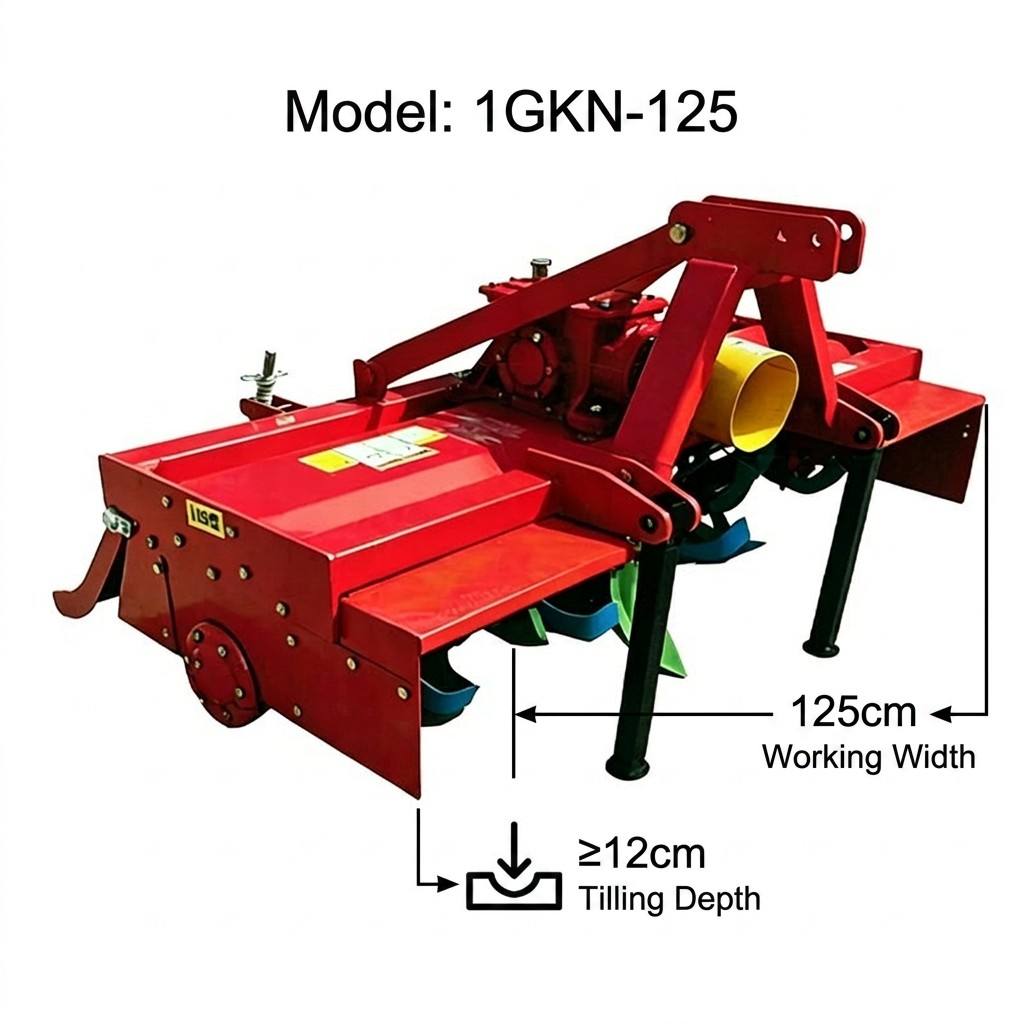

Working width: 125cm

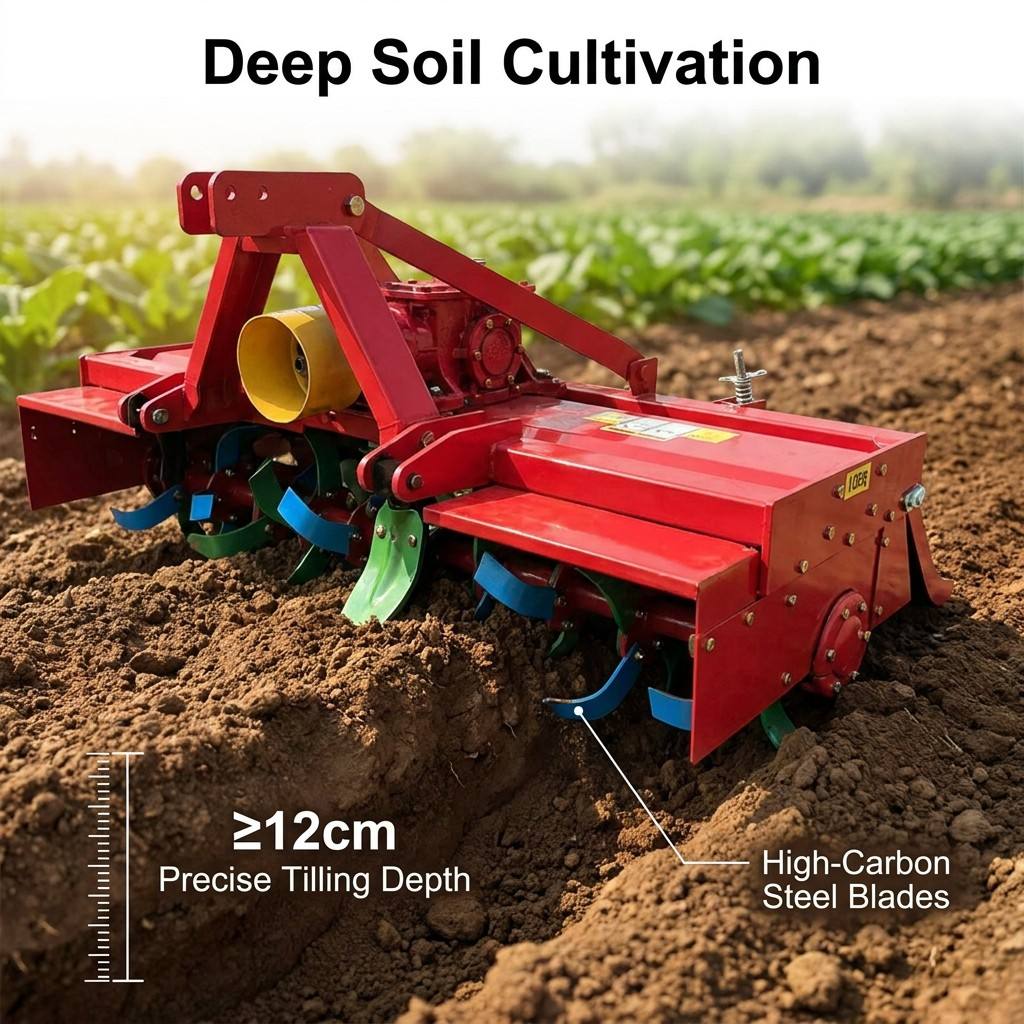

Cultivation depth: ≥ 12cm
Blade axis type: single axis type

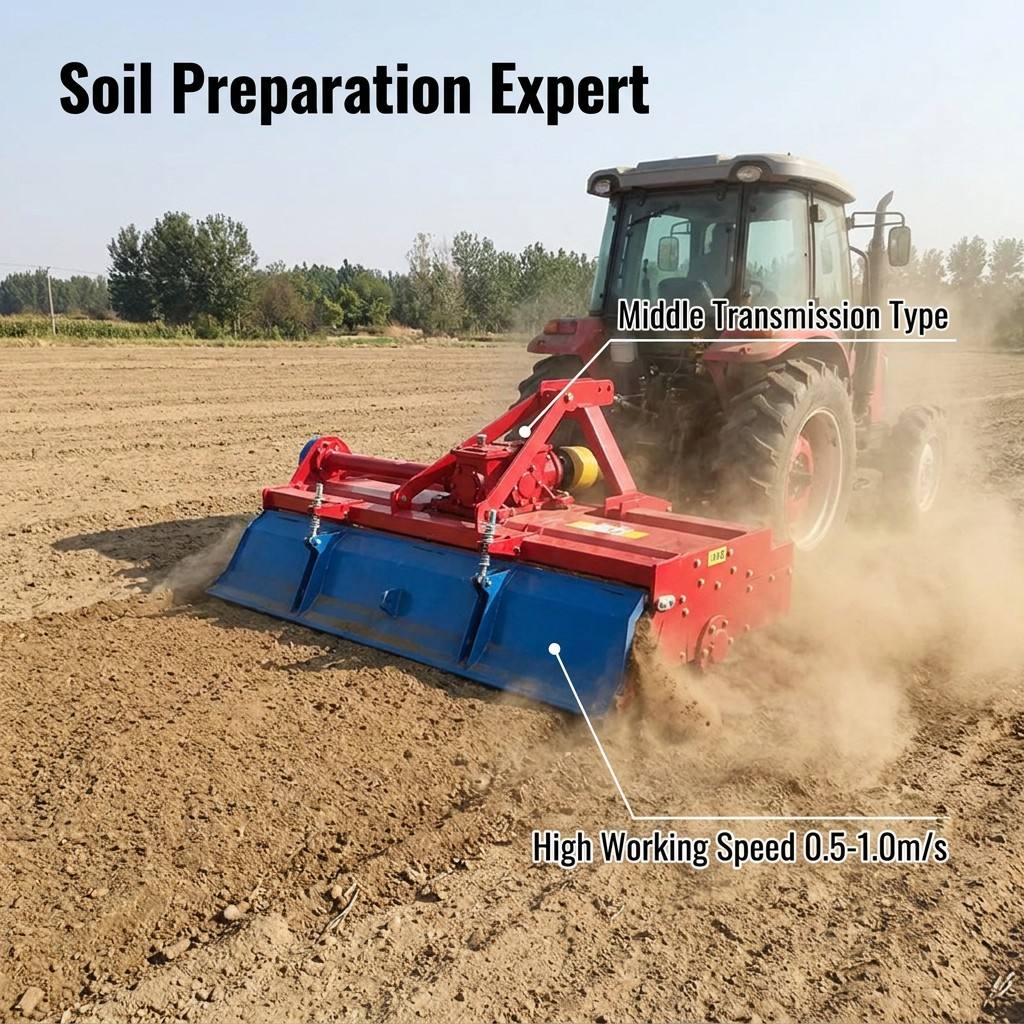

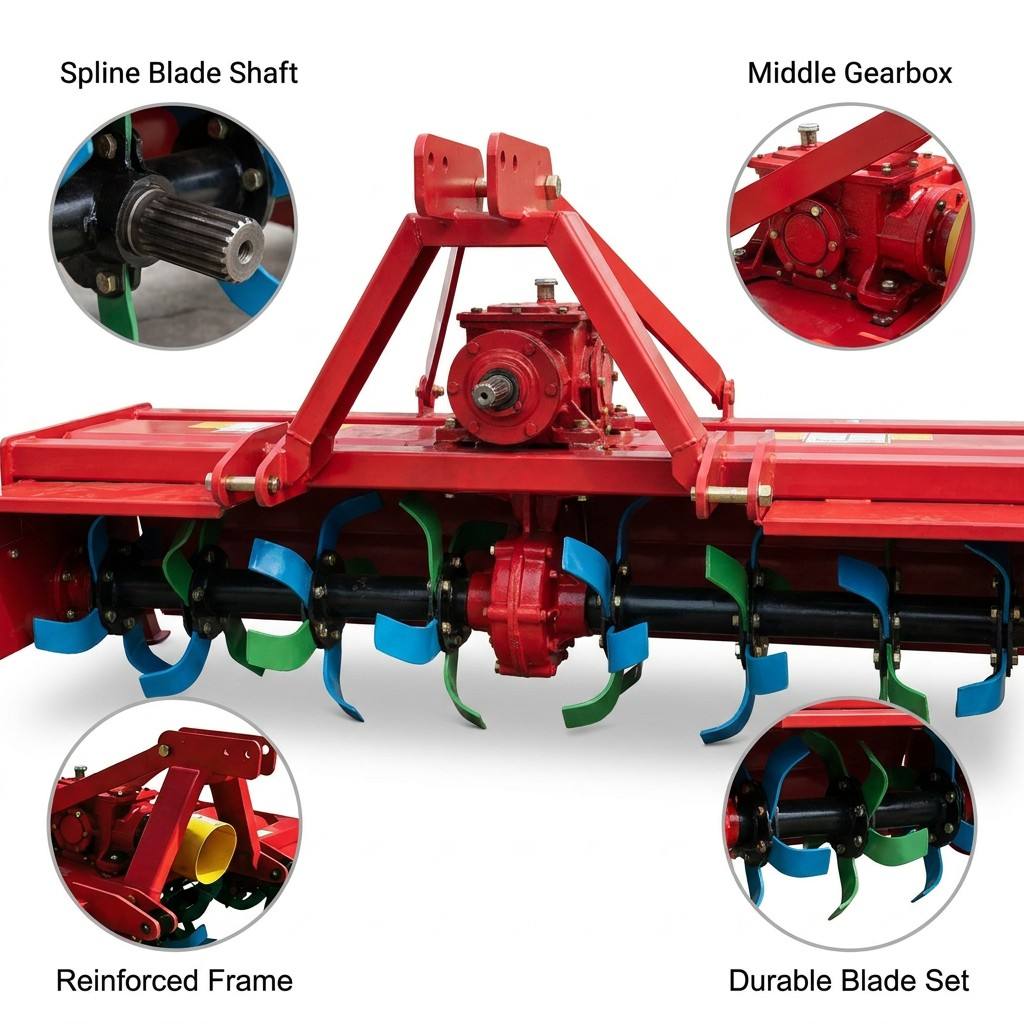

Transmission type: intermediate transmission
Maximum turning radius of knife roller: 225mm
Total number of blades installed on the knife roller: 28
Suppression type: drag board
Calibration power range of supporting tractor: 13.2-33.1kW
Supporting tractor power output shaft speed: 540r/min
