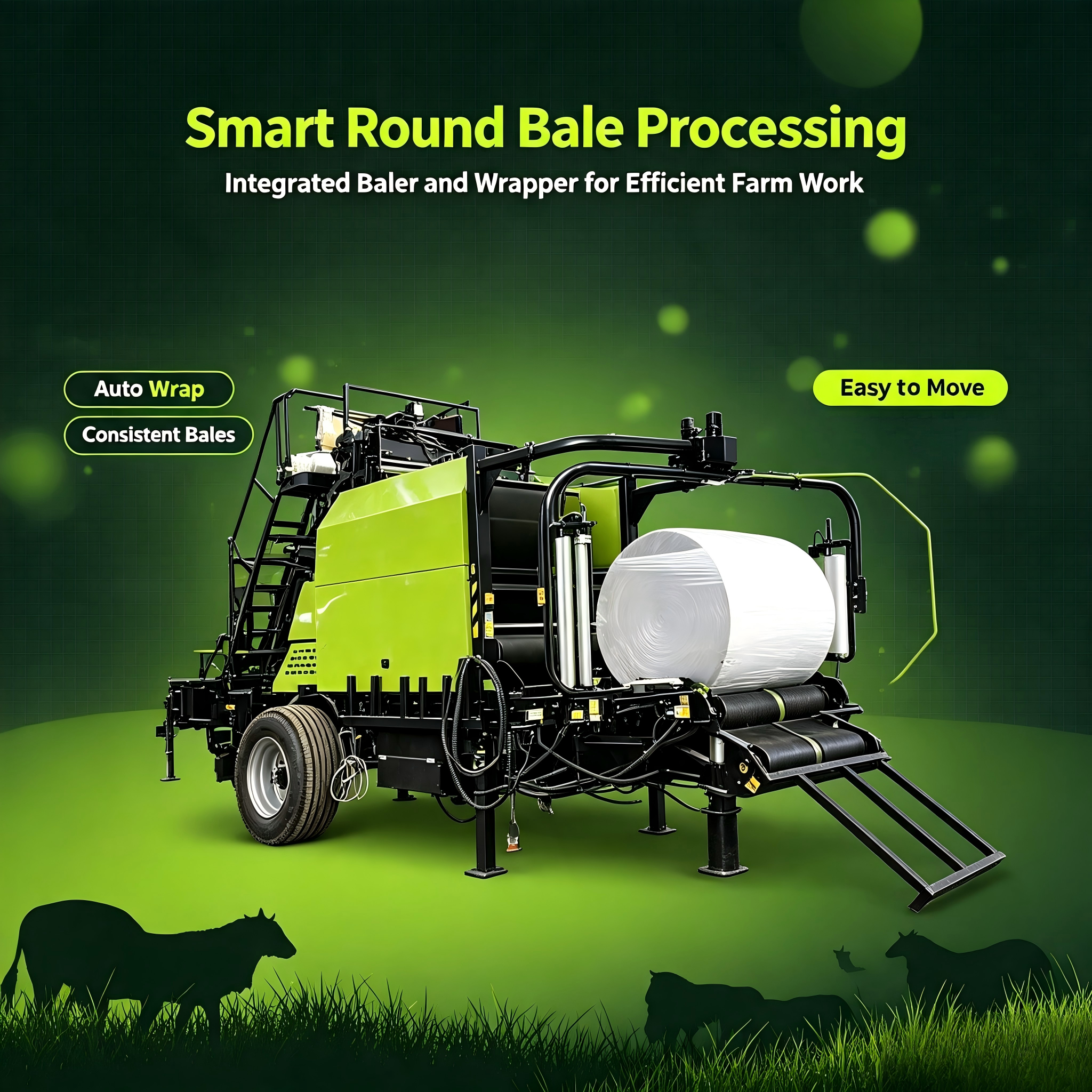

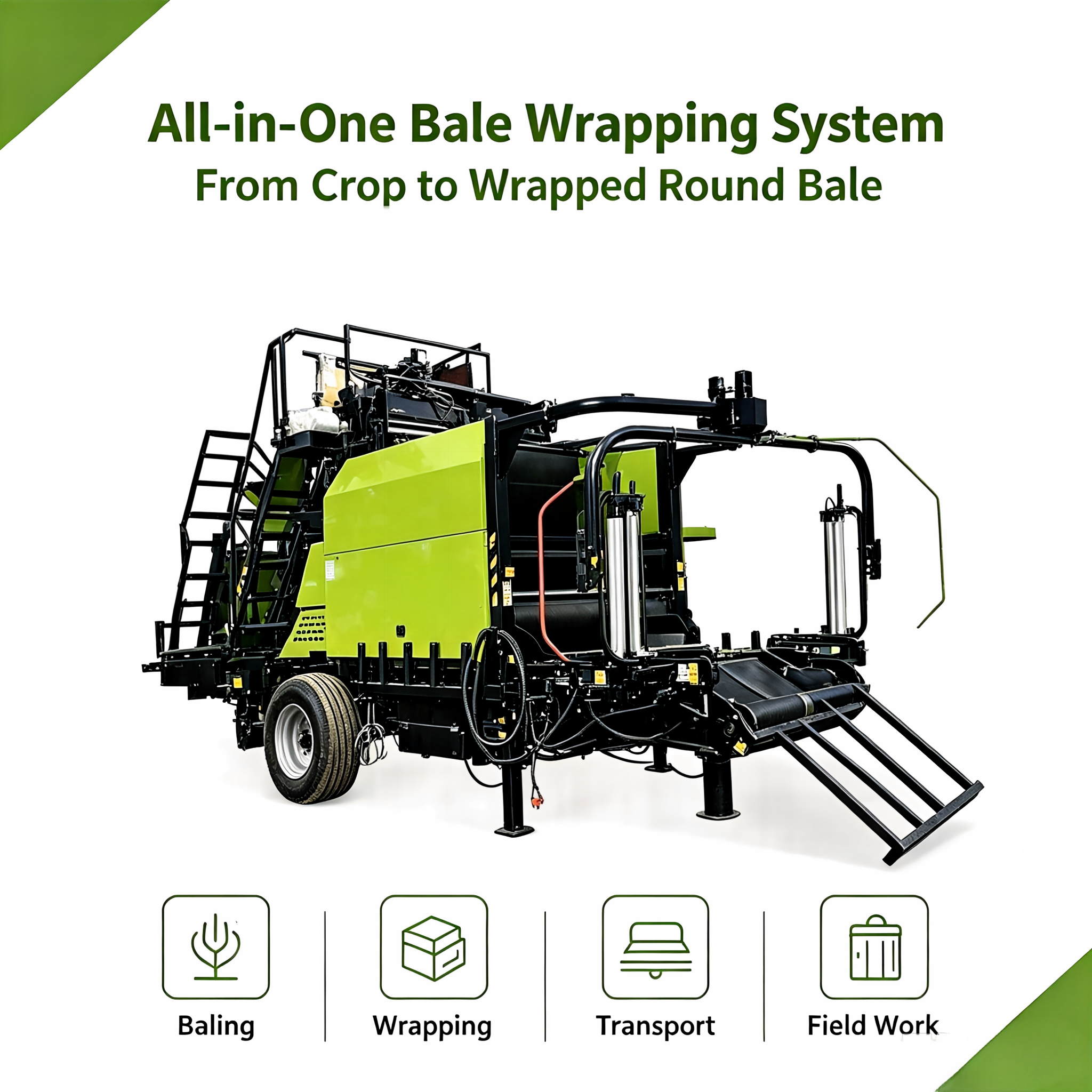

Bale Wrapper Model 9YCL-1.15

Automatic falling-material recovery system minimizes material spillage.
Automatic lubrication system ensures reliable equipment operation.
The baling chamber adopts a belt + roller combination, delivering high bale density and consistently uniform bale shape.
Fully automatic film wrapping control system provides optimal stretch-film tension and superior sealing performance.
Highly integrated controller enables fully automatic continuous operation and displays real‑time operating status of all components.
Built‑in lighting system facilitates convenient nighttime operation.
Foldable feed hopper saves space during transport and relocation.
The machine can be powered by a tractor, a variable‑frequency motor unit, or a diesel engine.

Description

Parameter	Specification
Structure type (baler)	Fixed roller and belt combination
Wrapper structure type	Swing arm (rotary arm) type
Hitch type	Trailed (drawbar)
Power source options	Electric motor、 tractor
Required power	≥75 kW, @ 850 r/min
Working dimensions (L×W×H)	10,850 × 3,085 × 4,050 mm
Transport dimensions (L×W×H)	10,850 × 3,085 × 4,050 mm (same as working)
Machine weight	9,200 kg
Feed opening width	1,200 mm
Baling chamber width	1,200 mm
Number of film racks (stretch film carriers)	2
Pallet belt width	570 mm × 2 (two belts)
Number of compression rollers	17
Film arm rotation radius	1,420 mm
Bale density	650–800 kg/m³ (for silage maize with 65%–70% moisture content)
Applicable bale diameter range	Φ1,150 mm ± 50 mm
Applicable bale length range	1,200 mm + 50 mm
Productivity	40–50 bales/h
