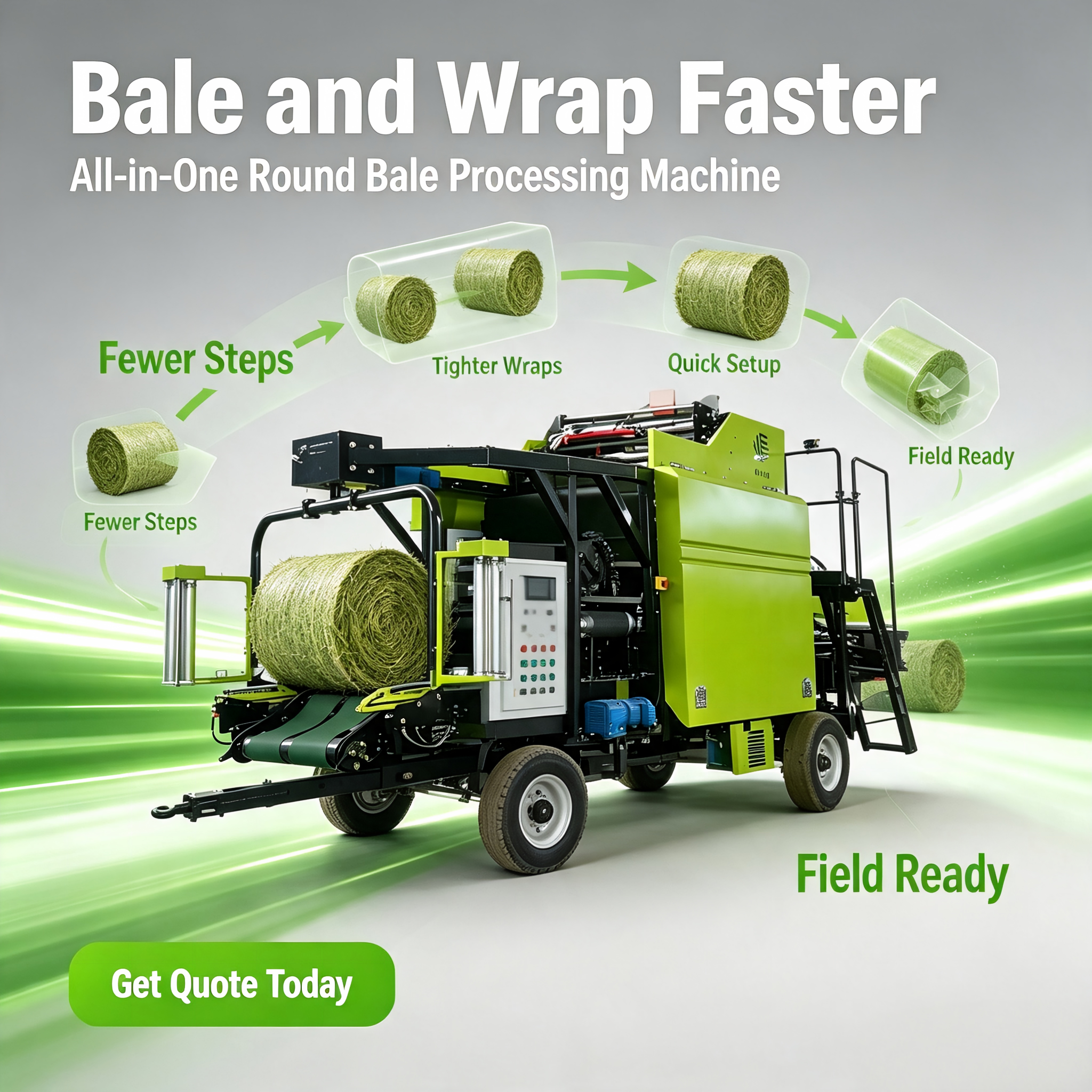

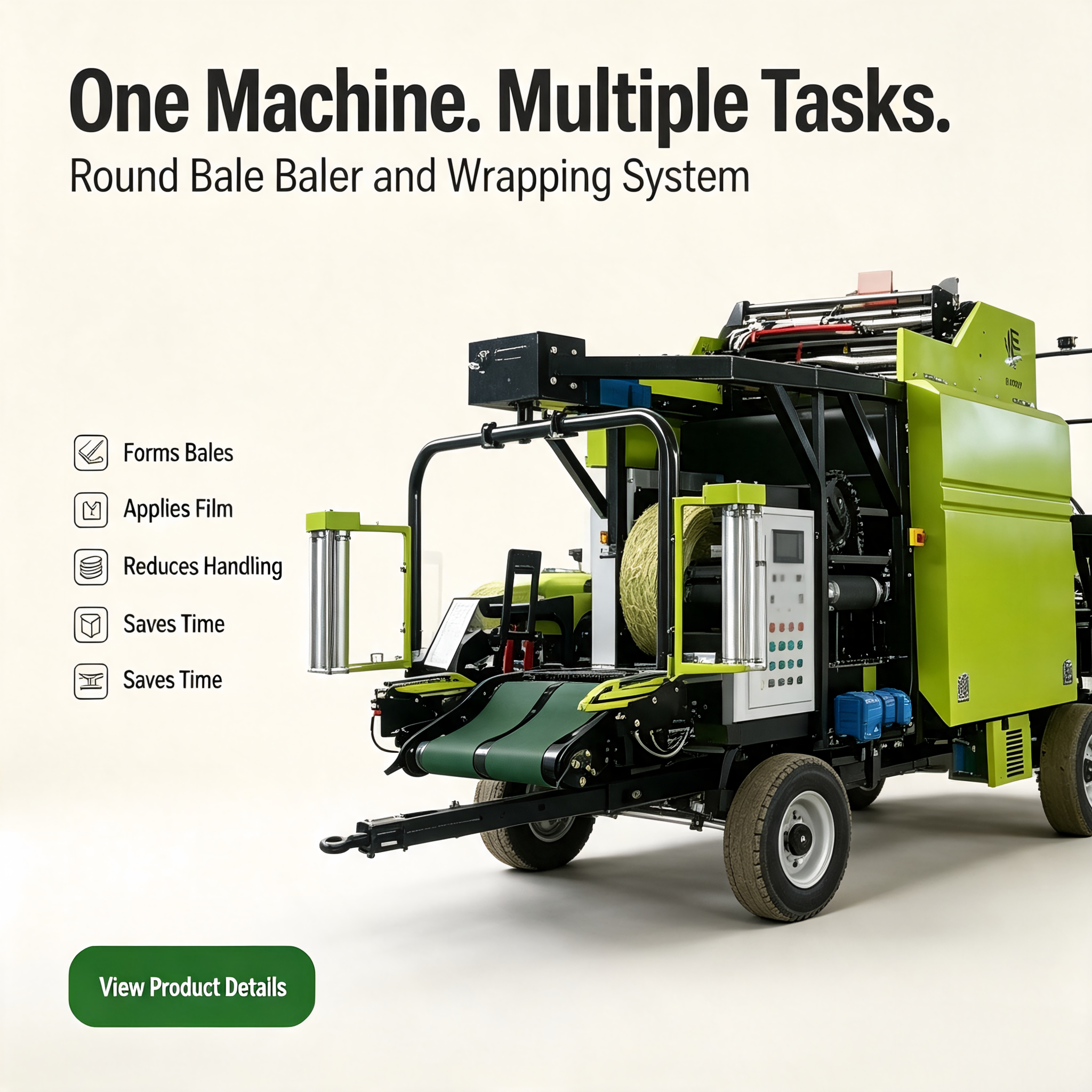

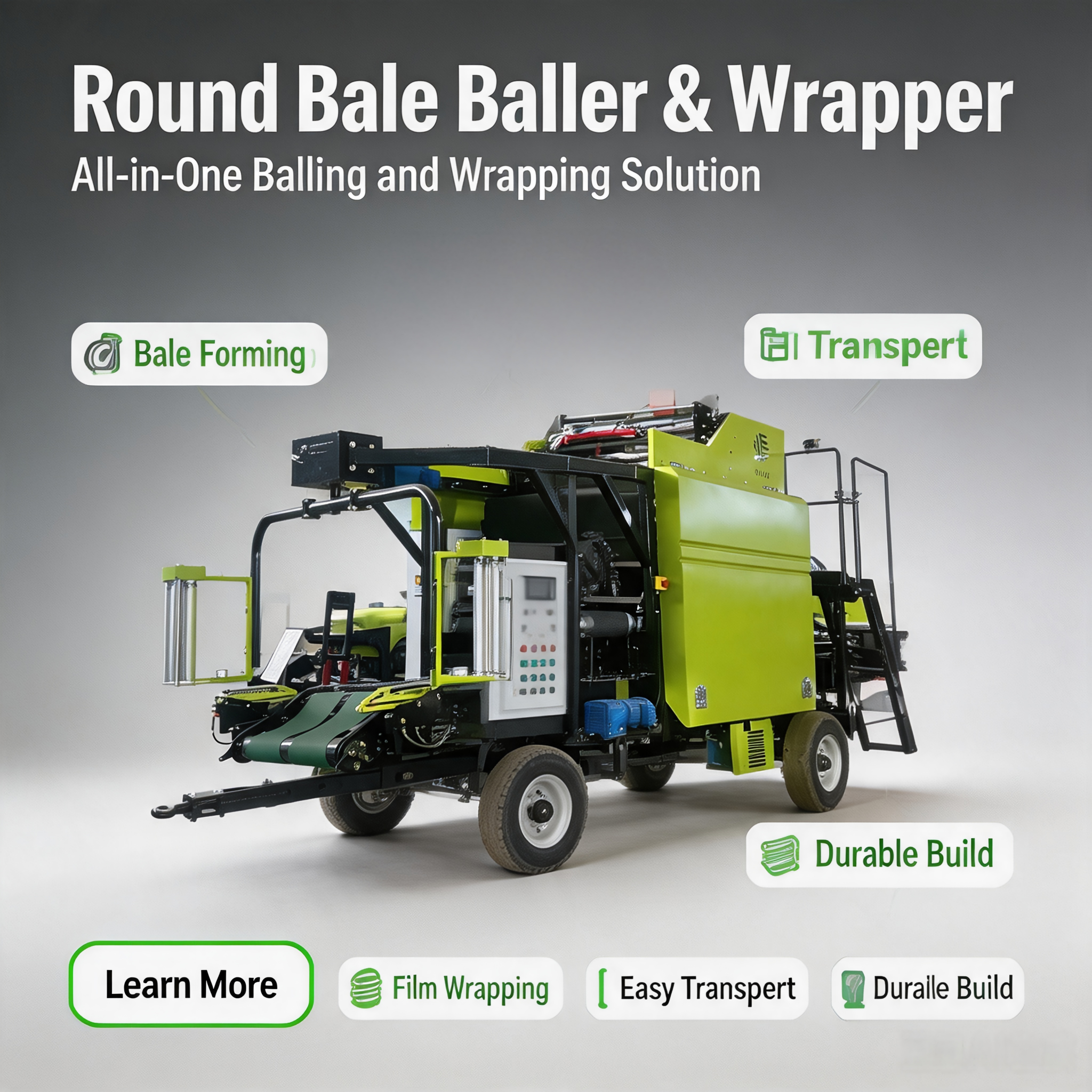

Bale Wrapper Model 9YCL-0.63

Automatic falling-material recovery system minimizes material spillage.
The baling chamber adopts a belt + roller combination, delivering high bale density and consistently uniform bale shape.
Fully automatic film wrapping control system ensures optimal stretch‑film tension and superior sealing performance.
Highly integrated controller enables fully automatic continuous operation and displays real‑time operating status of all components.

Description

Parameter	Specification
Baler structure type	Fixed roller and belt combination
Wrapper structure type	Rotary arm (swing arm) type
Hitch type	Trailed (drawbar)
Power source	Electric motor
Rated power	18.1 kW
Working dimensions (L×W×H)	7,300 × 1,800 × 2,350 mm
Transport dimensions – Main unit	4,200 × 1,800 × 2,350 mm
Transport dimensions – Hopper/feeder	3,100 × 1,600 × 1,700 mm
Total machine weight	2,700 kg (main unit: 2,100 kg; hopper: 600 kg)
Feed opening width	650 mm
Baling chamber width	650 mm
Number of film racks	2
Pallet belt width	310 mm × 2 (two belts)
Number of compression rollers	16
Film arm rotation radius	1,000 mm
Bale density	650–800 kg/m³ (for silage maize with 65%–70% moisture content)
Applicable bale diameter	Φ630 ± 20 mm
Applicable bale length	650 + 20 mm
Productivity	55–65 bales/h
